 GMC  LATHE                                            Specifications
 Model   GT-3280 , GT-32120
 Size   32"  x  80"  , 32"  x  120"
 Swing  over  bed   32"
 Distance  between  centers  80" , 120"
 Max  swing  over  cross-slide   22-1/16"
 Max  swing  in  gap   39-1/2"
 Width  of  bed   20-1/2"
 Effective  length  in gap  to  spindle  10"
 Effective  length  in  gap  to  chuck  jaws  7"
 Spindle  hole  dia.  4-1/8"
 Spindle  mount
 Taper  of  spindle  center  MT # 6
 Spindle  speeds  ( 12 )  30 - 1400  RPM
 Longitudinal  feeds  0.0023 - 0.93  IPR, 65  kinds
 Cross  feeds   0.0011 - 0.04  IPR, 65  kinds
 Threads  Details
 Inch  threads  28 - 2  TPI  27  kinds
 Metric  threads  1 - 14 mm  , 22  kinds
 Diamentral  pitch  threads  56 - 4  DP , 24  kinds
 Module  threads  0.5 - 7  MM , 18  kinds
 Carriage  Details
 Maximum  travel  of  top  slide  5-3/4"
 Maximum  travel  of  cross-slide  17"
 Longitudinal  rapid  traverse  18 ft / Min
 Cross rapid  traverse  8 ft / Min
 Tailstock  Details
 Diameter  of  tailstock  quill  3"
 Maximum  travel  of  tailstock  quill  6"
 Taper  of  tailstock  quill  center  M.T. # 5
 Max.  weight  of  workpiece  2800 lbs
 Motors  Details
 Main  motor  ( Pre-wired  220  V / 3 )  15  HP, 220/440  V, 3  phase
 Rapid  traverse  motor  1/3  HP, 220/440  V, 3  phase
 Coolant  pump motor Pre-wired  220 Volt / 3 )  1/8  HP, 220/440  V, 3  phase
 Machine  net  weight  Details
 GT-3280  9,350  lbs
 GT-32120  9,850  lbs
 Overall dimensions   Details
 GT-3280   L x W x H  142"  x  46"  x  68"
 GT-32120   L x W x H  182"  x  46"  x  68"
GT-3280  and  GT-32120  LATHES
32  x  80 Lathe , 32  x  120  Lathe
4-1/8"
Spindle  Bore

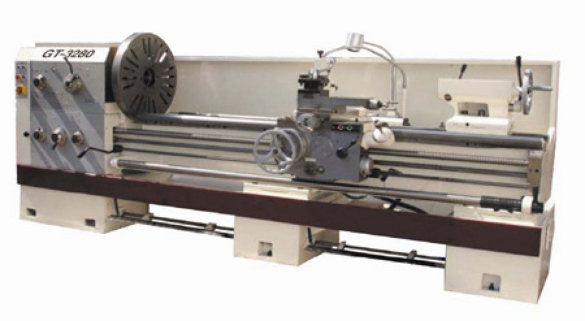

GMC  GT-3280  and  GT-32120 Lathes - New
DESCRIPTION  &  FEATURES:

These  New  32"  Swing GMC  GT-3280  and  GT-32120  metal  cutting  Lathes  carry  a  32"  swing  over  the  cross-slide  and  each  is  powered  by  a  15  HP  main  motor. Both  are  constructed  of  high  tensile  strength  cast  iron  and  are  incorporated  with  induction  hardened  and  ground  bed ways. Each  of  the  lathes  is  equipped  with  rapid  traverse .  These  ISO 9001  certified  lathes  carry  all  hardened  and  precision  ground  gears  &  shafts  within  the  headstock  and  a  automatic  lubrication  system  for  the  headstock  and  feed  box. 12  Spindle  Speeds  range  from  30  to  1400  rpm . The   footbrake  and  a  more  than adequete  4-1/8"  spindle  bore  make  either  of  these  lathes  a  great  choice  for  any  machine  shop  floor.

Inch, metric, diametral  pitch  and  module   threading  are  standard  on  each  lathe.

More  info  on  standard  features  and  equipment  can be  found  below.

Machine Standard Features and Equipment:


- ISO 9001 certified
- Large spindle bore 4-1/8
- Adjustable mechanical spindle clutch for spindle start Forward/reverse and
   brake, spindle brake without stop the spindle motor to longer motor 8 times life
   than most other Brand lathe with electrical start/stop.
- 4-way rapid traverse on Longitudinal and cross ways
- All dual inch/metric dials.
- Solid cast iron machine base
- Heavy Duty guideway width 20-1/2
- Heavy Duty main motor 15 HP
- 12 spindle speeds from 30-1,400 rpm
- Oil pump on apron for all ways and leadscrews
- Threading and feeding rate change without changing gears
- Spindle is balanced, hardened and precision ground
- Spindle is supported at 3-point by high precision bearings
- All gears and shafts are hardened and precision ground
- Guideways induction hardened and precision ground
- Automatic lubrication system in headstock and feed box
- One year warranty for parts

Standard Equipment  included  for

GMC Heavy Duty Lathes Model # GT-3280 and GT-32120:

   Free Taper turning attachment, , installed

   Automatic longitudinal kick-out carriage stop system for GT-3280 only

   16 inch 3-jaw chuck with top reversible jaws

   20 inch 4-jaw chuck with top reversible jaws

   25 inch Face plate

  10 inch drive plate

   6-3/4 ?? 12-1/2 inch large steady rest with roller jaws

   1-3 inch follow rest

  Removable gap

   4-way tools post

   Foot brake

   Halogen Work light

   Coolant system

  Oil pump on apron for lubrication to all ways and leadscrews

   Full length rear splash for GT-3280 only

  Section splash guard on Apron for GT-32120 only

   (2) dead centers and (1) reducing sleeve

  Thread chasing dial

   Tool box
