GMC  PBR-04316E  PLATE  ROLL - 4 Ft  x 3/16 In
W/ Powered  Bending Roll  Up/Down , W/ Push  Button  and  Display
Use  The
Previous
Arrow  Button
To  Scroll  Thru  All
GMC
Rolls
 GMC  ROLL                                          Specifications
 Model   PBR-04316E
 Rolling  Capacity  ( Mild  Steel )  4'3"  x  3/16"
 Rolling  Capacity  ( Stainless )  4'3"  x  11  Gauge
 Roll  Diameter  4-3/4"
 Minimum  Bending  Diameter  6"
 Pre-Bend  0.16"
 Roll  Speed  20 Ft / Min
 Rolls  Opening  1/2"
 Groove  Sizes  ( 3 )  3/8" , 1/2", 5/8"
 Motors  ( Options )  Details
 Main  motor  ( Pre-wired  220 / 3 Ph )  3 HP
                      ( Optional    440 / 3 Ph )  *
 Machine  Net  Weight  Details
 Net  Weight  2,750 lbs
 Overall dimensions   Details
 L x W x H  78"  x  30"  x  52"
Features:

ISO 9001 certified
Taiwan machine
Hardened  Rolls  ( 3 )
3-rollers are driven to perform high accuracy
Adjustable cone attachment included
3/8”, ½” and 5/8” grooves on rollers
One wheel one-side operated for bending roll
Powered  bending roll  up / down
Heavy duty casting frame
Heavy duty all steel welded construction
1/3 of full length in middle of roller is straight,
and two ends with crown to get perfect round performance.
Quiet running operation
Easy swing-out top roller
Safety line all around the machine for emergency stop
All rolls run forward and reverse
50  HRC  Hardened  Rolls
Safety type forward/reverse foot pedal
Power source 220V , 3  phase ( optional: 440V, 3 phase )
One year industrial warranty for parts

Standard Equipment for GMC H.D. Power Bending Rolls:
Adjustable cone attachment
3/8”, ½” and 5/8” grooves on rollers
Hardened  Rolls  ( 3 )
Removable safety foot pedal
Operation & parts manual
Orange color front cover is optional.
W/ Motorized bending roll up/down w/ push button and digital display for easy  operation of repeat jobs

Optional Equipment:
Safety fence for enclosure of the back side of the machine.
GMC  PBR-04316E - Illustrated

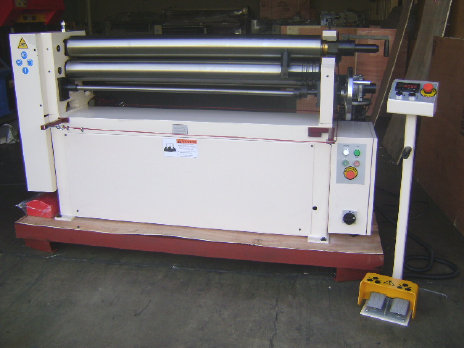

GMC  PBR-04316E  Plate  Roll
