GMC

LATHES

BUCK

B U C K' S P R E C I S I O N M A C H I N E T O O L S

G U N T E R S V I L L E, A L A B A M A 3 5 9 7 6

TEL: 2 5 6 - 5 8 2 - 5 3 5 3 www.buckspmt.com


GMC LATHE	Specifications
Model	GML-2560 , GML-2580
Size	25" x 60" , 25" x 80"
Swing over bed	25"
Distance between centers	60" and 80"
Max swing over cross-slide	14"
Max swing in gap	29"
Width of bed	13"
Effective length in gap to spindle	8"
Effective length in gap to chuck jaws	6"
Spindle hole dia.	3-1/8"
Spindle	D1-8 Camlok
Taper of spindle center	MT # 6
Spindle speeds ( 15 )	26 - 1800 RPM
Longitudinal feeds	0.0027 - 0.15 IPR, 66 kinds
Cross feeds	0.0013 - 0.075 IPR, 66 kinds
Threads	Details
Inch threads	1 - 56 TPI 66 kinds
Metric threads	0.5 - 28 mm , 66 kinds
Diamentral pitch threads	56 - 8 DP , 33 kinds
Module threads	0.5 - 3.5 MM , 33 kinds
Carriage	Details
Maximum travel of top slide	5"
Maximum travel of cross-slide	13"
Longitudinal rapid traverse	18 ft / Min
Tailstock	Details
Diameter of tailstock quill	2-1/2"
Maximum travel of tailstock quill	5"
Taper of tailstock quill center	M.T. # 5
Motors	Details
Main motor ( Pre-wired 220 V / 3 )	15 HP, 220/440 V, 3 phase
Rapid traverse motor	1/3 HP, 220/440 V, 3 phase
Coolant pump motor Pre-wired 220 V / 3 )	1/8 HP, 220/440 V, 3 phase
Machine net weight	Details
GML-2560	6,550 lbs
GML-2580	7,650 lbs
Overall dimensions	Details
GML-2560 L x W x H	115" x 46" x 71"
GML-2580 L x W x H	137" x 46" x 71"

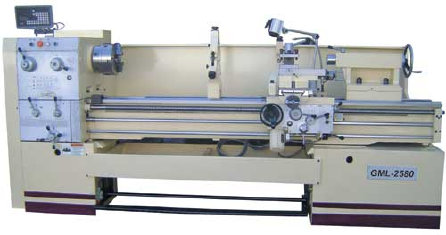

GML-2560 and GML-2580 Lathes

25 x 60 Lathe and 25 x 80 Lathe

3-1/8"

Spindle Bore

Removable

Gap

Bed

Accessories Package

Includes

3 and 4-Jaw Chucks,

Steady Rest,

Follow Rest and More

Details Below

15 HP

220 or 440 Volt

Three Phase

Pre-Wire

Available

GMC Model GML-2560 and GML-2580 Lathes , New

DESCRIPTION & FEATURES:

These New 25" Swing GMC GML-2560 and GML-2580 metal cutting Lathes carry a 25" swing over the cross-slide and each is powered by a 15 HP main motor. Both are constructed of high tensile strength cast iron and are incorporated with induction hardened and ground bed ways. Each of the lathes is equipped with rapid traverse . These ISO 9001 certified lathes carry all hardened and precision ground gears & shafts within the headstock and a automatic lubrication system for the headstock and feed box. 15 Spindle Speeds range from 26 to 1800 rpm . The footbrake and a more than adequete 3-1/8" spindle bore make either of these lathes a great choice for any machine shop floor.

Inch, metric, diametral pitch and module threading are standard on each lathe.

More info on standard features and equipment can be found below.

Standard Equipment for “GMC” Heavy Duty Lathes

Model # GML-2560, GML-2580

· Free OEM DRO for GML-2560 & GML-2580, installed

· Free Taper Turning Attachment, , installed

· Rapid Traverse on Carriage Longitudinal & Cross

· 12” 3-jaw chuck with top reversible jaws

· 12” 4-jaw chuck with top reversible jaws

· 27” Face plate

· 4-1/4” steady rest

· 1”-3” follow rest

· Automatic kick-out longitudinal carriage stop system

· Removable gap

· 4-way tools post

· Foot brake

· Halogen Work light

· coolant system

· Full length splash guard

· (2) dead centers and (1) reducing sleeve

· Thread chasing dial

· Tool box
