BIRMINGHAM YCL-2060 YCL-2080 YCL-20120 LATHE


BIRMINGHAM LATHE	Details
Model	YCL-2060, YCL-2080, YCL-20120
Size Class	20" x 60", 20" x 80", 20" x 120"
Swing over Bed	20.07"
Distance between centers	59.05" / 78.74" / 118.11"
Max. Effective cutting length	56" / 75 1/2" / 116"
Max. swing over cross slide	11 7/8"
Max. swing in gap bed	29"
Effective length in gap bed	6"
Width of bed	13 3/4"
Spindle nose	D1-8
Diameter of spindle thru bore	3 1/8"
Taper of spindle center	MT # 7 / MT # 5
Spindle speeds - 12 Steps	25, 35, 55, 80, 120, 170, 235, 350, 525, 700, 1100, 1600 RPM
Longitudinal feeds: 35 kinds	0.0022" to 0.0612" Rev.
Cross feeds: 35 kinds	0.00048" to 0.01354" Rev.
Metric threads: 47 kinds	0.2 to 14 mm
Inch threads: 60 kinds	2 to 112 TPI
Module threads: 39 kinds	0.1 to 7 mm
Diametral pitch threads: 50 kinds	4 to 112 DP
Max. travel of cross slide	12 15/16"
Max travel of top slide	5 1/8"
Longitudinal leadscrew Dia/Pitch	Dia. 1 5/8" / 4 TPI
Diameter of tailstock quill	3"
Taper of tailstock quill center	MT # 5
Max. travel of tailstock quill	7"
Main motor	10 HP, 230/460V/60 HZ, 3 phase - Prewired 230V
Coolant pump	1/8 HP, 230/460V/60 HZ, 3 phase Prewired 230V
Machine:	Net Weight
YCL-2060	5200 lbs
YCL-2080	5900 lbs
YCL-20120	8500 lbs

STANDARD EQUIPMENT:

Follow Rest, 18" Face plate, 7 1/2" Steady rest with rollers, 12" 3-Jaw Chuck, 16" 4-Jaw Chuck, 10" Drive plate, Coolant system, Removable gap, 4-Way tool post, Thread chasing dial, 4-Position automatic Kick-Out Longitudinal carriage stop, Full length foot brake, Full length splash guard, Halogen work light, Dead centers ( 2 ) , Reducing sleeve - MT# 7 - MT # 5, Tool kit with tools, Operation & parts manual .

BONUS ! - FREE TAPER ATTACHMENT FOR A LIMITED TIME !

OPTIONAL EQUIPMENT:

12" Steady Rest with Roller Jaws

5C Hand Lever Type Collet Closer

Use The

Next Or Previous

Arrow Button

To Scroll Thru All

BIRMINGHAM

YCL SERIES

LATHES

BIRMINGHAM YCL-2060 , YCL-2080 and YCL-20120 LATHES - Video

3 1/8"

Spindle Bore

Discount Prices ! Discount Prices ! Discount Prices ! Discount Prices !

DESCRIPTION & FEATURES

These 20" Swing BIRMINGHAM YCL Series Lathes include the models YCL-2060, YCL-2080 and YCL-20120. These Birmingham Lathes have proven themselves to be the choice geared head metal cutting lathe of the professional machinist . Some of the many features included on these Birmingham YCL Series Lathes are a one piece cast Iron base, Removable Gap Bed, 10 HP main motor, 3 1/8" Spindle Bore, 60 kinds of inch threads, 47 kinds of metric threads, 39 kinds of module threads and 50 kinds of diametral pitch threads. No change gears are required for most thread cutting applications. The Birmingham YCL-2060, YCL-2080 and YCL-20120 Lathes feature a fine grain high tensile strength bed and will provide many years of trouble free service . All gears, shafts and bedways are hardened & ground and the main spindle is hardened & ground. Additional features and equipment on the Birmingham YCL-2060, YCL-2080, YCL-20120 Lathes include 3 and 4-Jaw Chucks, face plate, steady rest, follow rest, 4-Way Tool Post, thread chasing dial, dead centers, reducing sleeve, full length splash guard, one piece cast iron base, foot brake, worklight, coolant system, leveling pads, 4 position auto kick-out longitudinal carriage stop and tool box - and for a limited time we are including a free taper attachment - installed - at no extra cost.

FOR ADDITIONAL INFORMATION OR TO REQUEST A QUOTE CONTACT:

DAN BUCHANAN

TEL: 256-582-5353

Dealer of Birmingham Lathes for More Than 30 Years !

Inch, Metric,

Diametral

Pitch

and

Module Thread Cutting

Hardened and Ground

Gears, Shafts, Spindle

and

Bedways

Digital Readout: Newall, Acu-Rite or Birmingham Uniq

Removable

Gap

Bed

Geared Head Gap Bed Engine Lathes

B U C K' S P R E C I S I O N M A C H I N E T O O L S

G U N T E R S V I L L E, A L A B A M A 3 5 9 7 6

TEL: 2 5 6 - 5 8 2 - 5 3 5 3 www.buckspmt.com

New

Machine Tools

by Name Brand are

Listed Below

Select a Link To

Go to the Index Page

of Your Choice

WE ALWAYS

DISCOUNT !

BIRMINGHAM YCL-2060 LATHE

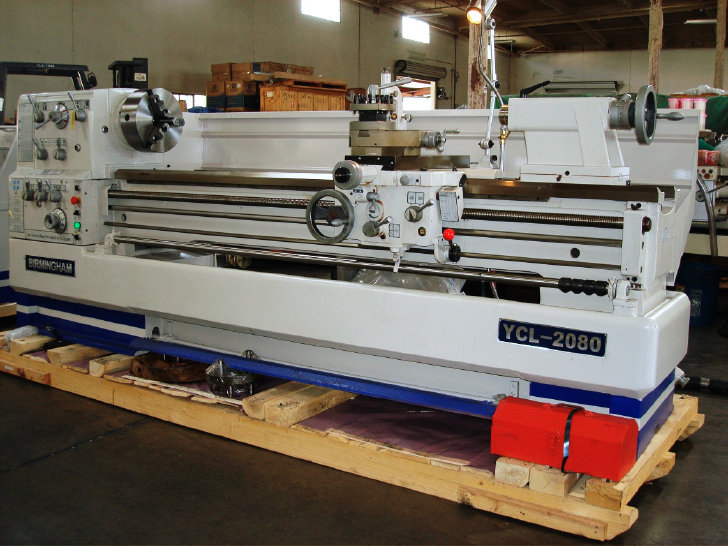

BIRMINGHAM YCL-2080 LATHE
