BIRMINGHAM YCL-2660 YCL-2680 YCL-26120 LATHE

Discount Prices ! Discount Prices ! Discount Prices !


BIRMINGHAM LATHE	Details
Models	YCL-2660, YCL-2680, YCL-26120
Size Class	26" x 60", 26" x 80", 26" x 120"
Swing over Bed	25.98"
Distance between centers	59.05" / 78.74" / 118.11"
Max. swing over cross slide	17.32"
Max. swing in gap	35.43"
Effective length in gap	9.84"
Spindle nose	D1-8
Diameter of spindle thru bore	4 1/8"
Taper of spindle center	MT # 7 / MT # 5
Spindle speeds - 16 Steps	26 To 1,700 RPM
Longitudinal feeds: 25 kinds	0.00083" to 0.02774" Rev.
Cross feeds: 25 kinds	0.00165" to 0.05497" Rev.
Metric threads: 54 kinds	0.45 to 120 mm
Inch threads: 54 kinds	7/16 to 80 TPI
Module threads: 46 kinds	0.25 to 60 mp
Diametral pitch threads: 42 kinds	7/8 to 160 DP
Max. travel of cross slide	14 1/2"
Max travel of compound rest	9 1/4"
Diameter of tailstock quill	3 1/2"
Taper of tailstock quill center	MT # 5
Max. travel of tailstock quill	9 1/4"
Main motor	10 HP, 230/460V/60 HZ, 3 phase - Prewired 230V
Coolant pump	1/8 HP, 230/460V/60 HZ, 3 phase Prewired 230V
Machine	Net Weight
YCL-2660	5900 lbs
YCL-2680	6393 lbs
YCL-26120	7275lbs

DESCRIPTION & FEATURES:

These BIRMINGHAM YCL "26" Series Lathes include models YCL-2660, YCL-2680 and YCL-26120 . These Birmingham Lathes have proven themselves to be the choice geared head metal cutting lathe of the professional machinist . Some of the many features included on these Birmingham YCL Series Lathes are 4-Way Rapid Traverse, On The YCL-26120 ( Optional On YCL-2660 & YCL-2680 ) ,Removable Gap Bed, 10 HP Main motor, D1-8 Spindle Mount with 4 1/8" spindle bore, 16 Speeds ( 26 to 1700 RPM ) , 54 kinds of Inch threads, 54 kinds of Metric threads, 42 kinds of Diametrical Pitch threads and 46 kinds of Module Pitch threads . The Main Spindle is hardened & precision ground and the bed is made of a fine grain high tensile strength cast iron . The Bedways are Induction hardened & precision ground and all gears & shafts are hardened & precision ground . No change gears are required for the most commonly used threading applications . The Main Spindle is supported at 3 - points by high precision bearings . A one piece cast iron base is standard

STANDARD ACCESSORIES INCLUDED:

12” 3-Jaw Chuck ( 2- Piece Jaws ) , 16” 4-Jaw Chuck ( 2 Sets Reversible Jaws ) , 4-Way Rapid Traverse, 18” Face Plate, 7” Steady Rest, Follow Rest, Gap, 4-Way Tool Post, Threading Chasing Dial, (2) Dead Centers, Reducing Sleeve, Full Length Splash Guard, One-Piece Cast Iron Base, Foot Brake, Halogen Work Light, Coolant System, Leveling Pads, Tools

FREE TAPER ATTACHMENT - INSTALLED

BIRMINGHAM YCL-2660 , YCL-2680 , YCL-26120 LATHE - Video

A l l R i g h t s R e s e rv e d

Optional Accessories:

12" Large Steady Rest

Digital Readout: Newall or Birmingham Uniq

B U C K' S P R E C I S I O N M A C H I N E T O O L S

G U N T E R S V I L L E, A L A B A M A 3 5 9 7 6

TEL: 2 5 6 - 5 8 2 - 5 3 5 3 www.buckspmt.com

New

Machine Tools

by Name Brand are

Listed Below

Select a Link To

Go to the Index Page

of Your Choice

Birmingham YCL Model "26" Series Lathes Include a Removable Gap Bed , 4-1/8" Spindle Bore , Hardened and Ground Gears , Shafts , Spindle and Bedways . Threading: Inch, Metric, Diametral Pitch and Module Thread Cutting

FOR ADDITIONAL INFORMATION OR TO REQUEST A QUOTE CONTACT:

DAN BUCHANAN

TEL: 256-582-5353

We Always Discount !

Dealer Of Birmingham Lathes For More Than 30 Years !

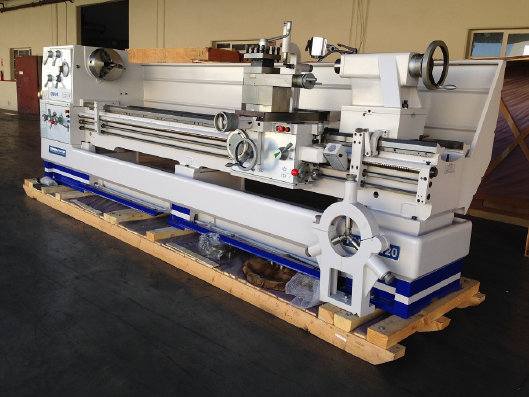

BIRMINGHAM YCL-26120 Lathe - Video
