US  INDUSTRIAL  13 Ft x 3/8" HYDRAULIC  SHEAR
Model  US13375
STANDARD  EQUIPMENT:
CNC  CONTROL  OPTION:
3-Axis  CNC  Programmable  Back  Gauge

Touch  screen  operated
Controls  back  gauge  depth, blade  gap  and
stroke  length
200  Program  storage  capacity
Can  be  operated  in  manual  or  automatic
mode
   * Bolt  On  Table  Segments
   * Hold-Downs  Faced  With  Anti-Mar  Neoprene
   * Swing  Beam  Design
   * Pressure  Sensing  Hold-Downs
   * Electric  Stroke  Adjustment
   * Operator  Control  Console
   * Shadow  Lighting
   * Low  Noise  Gear  Pump
   * Support  Arms
   * Squaring  Arm
   * High  Carbon, High  Chrome  Shear  Blades
   * Ball  Transfers  On  Each  Table  Segment
   * Manual  Quick  Change  Blade  Gap  Adjustment
   * Squaring  Arm: 39.5"  From  Blade  To  End
   * Stroke  Counter
   * Front  Controlled  Power  Back  Gauge
   * Blade  Guard, Micro  Switch  Protected
   * Hydraulic, Electrical  Overload  Protection
   * Automatic  Swing-Up  On  Back  Gauge
Pneumatic  Sheet  Support
Material  Support / Drop  Chute
Front  &  Rear  Protection  Guards

6  Foot  Squaring  Arm
8  Foot  squaring  Arm
10  Foot  Squaring  Arm

48"  ( inch ) Back Gauge

INSTALLATION  AND  TRAINING
Priced  Per  Day  +  Travel
HARDWARE  &  ACCESSORY  OPTIONS:
 BUCK
B U C K' S   P R E C I S I O N    M A C H I N E   T O O L S
G U N T E R S V I L L E,  A L A B A M A   3 5 9 7 6
TEL: 2 5 6 - 5 8 2 - 5 3 5 3     www.buckspmt.com
S
Home
About Us
Contact Us
SPECIFICATIONS:

• Sheet Size: 157”
• Shearing Capacity: 3/8” Mild Steel @ 65,000 PSI
• Shear Angle: 1 Degree 30’
• No Load Strokes: 8
• Throat Depth: 5.5”
• Adjustment Range of Back Gauge: 0.75” - 36”
• Hydraulic Oil Capacity: 113 Gal.
• Main Motor: 20 HP
• Net Weight: 30,864 lbs.
• Dimensions (L x W x H): 193” x 88” x 80”

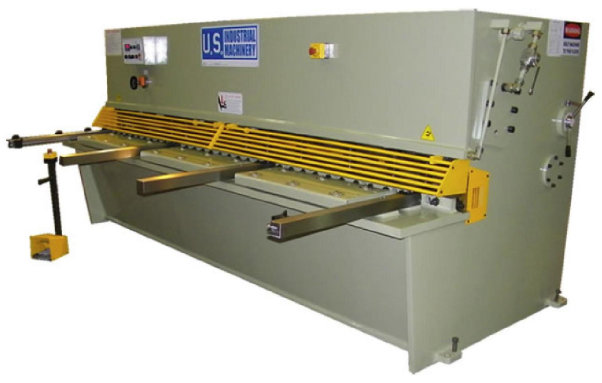

US INDUSTRIAL US1025 10 x 1/4 HYDRAULIC SHEAR Illustrated
