US INDUSTRIAL USHB200-13 200 TON x 13 Ft CNC HYDRAULIC PRESS BRAKE New

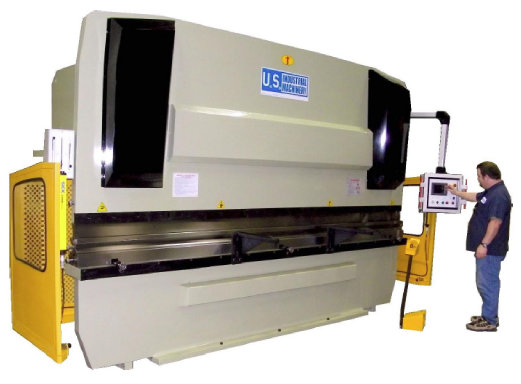

US INDUSTRIAL 200 TON x 13' HYDRAULIC PRESS BRAKE

SPECIFICATIONS:

• Working Pressure: 200 Tons

• Length of Working Table: 157.4”
• Distance Between Housings: 124”

• Throat Depth: 12.5”

• Stroke Adjustment of Ram: 2.75”

• Ram Travel: 7”
• Open Height: 17.5”

• Rapid Ram Travel Speed: 2.4”/sec.
• Rapid Ram Retreat Speed: 2.0”/sec.

• Pressing Speed: Dependent on Tool Load
• Hydraulic Oil Capacity: 97 Gal.
• Motor Horsepower: 20 HP
• Net Weight: 28,660 lbs.
• Length: 179”
• Width: 64”
• Height: 101”

STANDARD EQUIPMENT: (All of the following comes with the machine)

• U.S.INDUSTRIAL 2-AXIS CNC BACK GAUGE
*Controls both ram depth and back gauge. The 2GB compact flash card can hold thousands of programs and allows up to 10 bends per program..

• Ram Deflection Adjustment
• Mechanical Ram Depth Control
• Massive Torsion Bar or Parallelism
• Forged Heavy Duty Cylinder and Cylinder Body
• Three Speed Ram
*Rapid Approach, Bending Cycle and Rapid Retreat.

• Bottom Time Delay
• All Steel Construction
• Inching, Single Cycle and Continuous Operation
• Free Gooseneck Punch and multi-opening Die for up to 90° forming in 10 gauge mild steel

• Special Note: The Gooseneck Punch and multi-opening Die included are general purpose tools to be used for training only. Precision tooling should be purchased to meet your specific needs. The punch is segmented and it is up to the customer to calibrate these if they want to use them for a particular purpose. There is NO warranty on these items.

• CNC 2-Axis Color Graphic Control
•Sick Model 4000 Light Curtain System *For State of the Art Safety

• Third Axis (Back Gauge Height)
• CNC Controlled Hydraulic Auto Crown
• Servo Back Gauge
• Installation and Training
