US  INDUSTRIAL  6  Ft  x  1/4"  INITIAL  PINCH  PLATE  ROLL
With  CROWNED  ROLLS  AND  ROLL  POSITION  INDICATORS
 BUCK
S
B U C K' S   P R E C I S I O N    M A C H I N E   T O O L S
G U N T E R S V I L L E,  A L A B A M A   3 5 9 7 6
TEL: 2 5 6 - 5 8 2 - 5 3 5 3     www.buckspmt.com

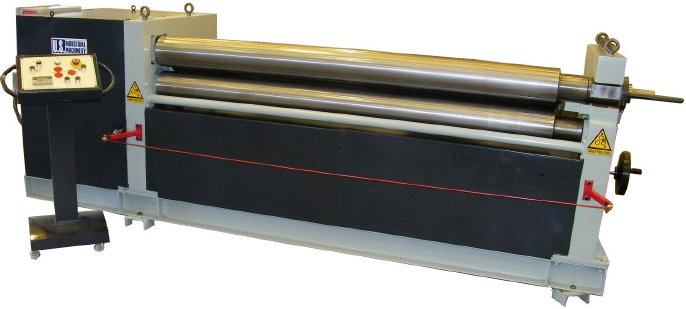

US  INDUSTRIAL  6 Ft  x  1/4  PLATE  ROLL , Model  USR625
Home
About Us
Contact Us
NEW
MACHINE  TOOLS
Main  Index  Page






USED
MACHINE  TOOLS
Main  Index  Page







List  Your
Wanted
MACHINERY







List  Your
For  Sale
MACHINERY






New
Machine  Tools
by  Name   Brand  are
Listed  Below

Select  a  Link  To
Go  to  the  Index  Page
of  Your  Choice
COSEN  SAWS
Horizontal Band Saws
Vertical  Bandsaws
Automatic
Semi - Automatic
Straight-Cut, Mitering
Structural  and
Billet  Saws








GMC
Apron  Brakes
Lathes
Metal  Sanders
Milling  Machines
Plate  Rolls
Saws
Shears





MODERN  TOOL
Big  Hole
Hollow  Spindle
Oil  Field
CNC  Lathes







US  INDUSTRIAL
Ironworkers
CNC  Hydraulic
Press  Brakes
Hydraulic  Shears
Plate  Rolls






BIRMINGHAM
Lathes
Milling  Machines
Apron  Brakes
Shears
Saws
Plate  Rolls
Surface  Grinders
USR825 - Illustrated
  • Boeing Aerospace Company
  • General Dynamics
  • Honeywell
  • Siemens Westinghouse
  • Hawker Beechcraft
  • United States Navy
  • Texas National Guard
  • Pratt Whitney
  • Goodyear
  • Florida Power and Light
  • Toyota
  • Procter & Gamble
    • US  Industrial  Machinery - User  List
    * *
    FOR  ADDITIONAL  INFORMATION  OR  TO  REQUEST  A  QUOTE  CONTACT:

    DAN  BUCHANAN

    TEL: 256-582-5353

    Dealer  Of  Machine  Tools  Since  1977 !
    Copyright |   B U C K  S    P R E C I S I O N   M A C H I N E   T O O L S   | A l l  R i g h t s   R e s e rv e d
    Next  Page
    Previous  Page
    PLATE  ROLLS
     STANDARD EQUIPMENT: (All of the following comes with the machine)

    • Powered Roll Adjustment and Manual Precision Pinch Roll Adjustment
    • Top Roll Manual Swingout
    • Emergency Trip Line
    • Pedestal Control
    • Quick Roll Adjustment
    • Roll Position Indicators
    • Crowned Rolls
    • Low Voltage Push Button Controls

    SPECIFICATIONS:
    • Capacity: 6‘ x 1/4” Mild Steel @ 65000 PSI
    • Pre-Bend Capacity: 1/4” Mild Steel @ 65000 PSI
    • Roll Diameter: 6.7” On All 3 Rolls
    • Speed: 12. 5 FPM
    • Main Drive Motor: 5.5 HP Reduction Gear Drive
    • Adjustment Motor: 3 HP”
    • Machine Length: 144”
    • Machine Width: 54”
    • Machine Height: 44”
    • Net Weight: 6,800 lbs.
    • Voltage: 220/440 Volts, 3 Phase

    *Specifications are subject to change without notice

    AVAILABLE OPTIONS:

    • Hardened Rolls:
    • Cone Rolling Attachment:
    • LED Readout With Memory:
    Control
    Plate Roll End Housing
    Plate Roll End Housing
    US Industrial Machinery
