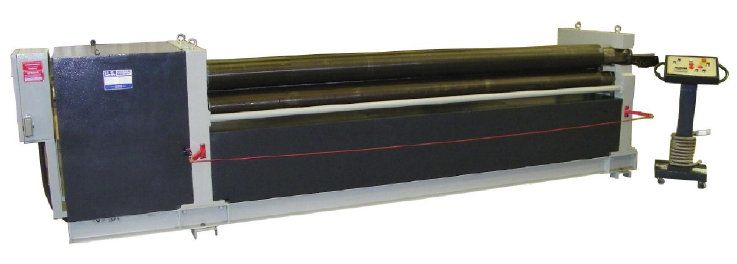

STANDARD EQUIPMENT: (All of the following comes with the machine)
• Powered Roll Adjustment and Manual Precision Pinch Roll Adjustment
•
Top Roll Manual Swingout
• Emergency Trip Line
• Pedestal Control
• Quick Roll Adjustment
• Roll Position Indicators
• Crowned Rolls
• Low
Voltage Push Button Controls
SPECIFICATIONS:
• Capacity: 10‘ x 1/4” Mild Steel @ 65000 PSI
• Pre-Bend Capacity: 1/4” Mild Steel @ 65000
PSI
• Roll Diameter: 7.4” On All 3 Rolls
• Speed: 19 FPM
• Main Drive Motor: 5.5 HP Reduction Gear Drive
• Adjustment Motor: 3 HP”
• Machine
Length: 177”
• Machine Width: 54”
• Machine Height: 44”
• Net Weight: 9,250 lbs.
• Voltage: 220/440 Volts, 3 Phase
*Specifications
are subject to change without notice
AVAILABLE OPTIONS:
• Hardened Rolls:
• Cone Rolling Attachment:
•
LED Readout With Memory:
