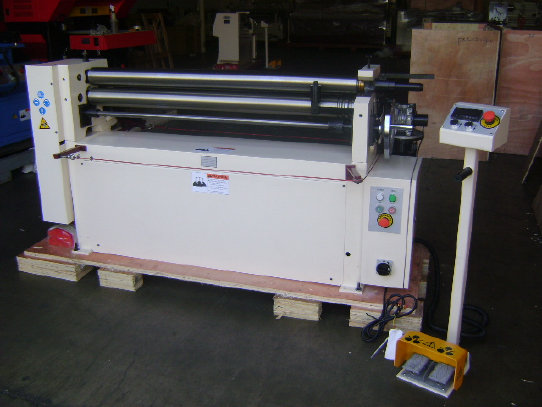

GMC PBR-0412 PLATE ROLL - 4 Ft x 12 Gauge
W/ Manual Handwheel to Adjust
Bending Roll
Use The
Next Or Previous
Arrow Button
To Scroll Thru All
GMC
Rolls
| GMC ROLL |
Specifications
|
| Model |
PBR-0412 |
| Rolling Capacity
( Mild Steel ) |
4' 3" x 12 Gauge |
| Rolling Capacity ( Stainless ) |
4' 3"
x 16 Gauge |
| Roll Diameter |
3-1/2" |
| Minimum Bending Diameter |
4-3/4" |
| Pre-Bend |
0.07" |
| Roll
Speed |
20 Ft / Min |
| Rolls Opening |
1/2" |
| Roll Hardness ( For Stainless ) |
HRC
50 |
| Groove Sizes ( 3 ) |
3/8" , 1/2", 5/8" |
| Motors ( Options ) |
Details |
| Main motor
( Pre-wired 220/440/ 3 ) |
2 HP |
| Main motor ( Pre-wired 220/ 1 ) |
3 HP |
| Machine
Net Weight |
Details |
| Net Weight |
1950 lbs |
| Overall dimensions |
Details |
| L x W x H |
78"
x 30" x 50" |
Features:
ISO 9001 certified
Taiwan machine
3-rollers are driven to perform high accuracy
Adjustable cone attachment included
3/8”,
½” and 5/8” grooves on rollers
One wheel one-side operated for bending roll
One wheel one-site operated for pinch roll ( Optional E
model is powered )
Heavy duty casting frame
Heavy duty all steel welded construction
1/3 of full length in middle of roller is straight,
and
two ends with crown to get perfect round performance.
Quiet running operation
Easy swing-out top roller
Safety line all around the machine
for emergency stop
All rolls run forward and reverse
Safety type forward/reverse foot pedal
50 HRC Hardened Rolls
for Stainless
Power source 220V, ( option: 440V, 3 phase ) or 220/1 Phase
One year industrial warranty for parts
Standard Equipment for GMC H.D. Power Bending Rolls:
Adjustable cone attachment
3/8”, ½” and 5/8” grooves on rollers
Removable safety
foot pedal
Operation & parts manual
Orange color front cover is optional.
E models come with motorized bending roll up/down w/ push
button and digital display for easy operation of repeat jobs
Optional Equipment:
Safety fence for enclosure of the back
side of the machine.
