GMC  PBR-1012E  PLATE  ROLL - 10 Ft  x 12 Gauge
W/ Powered  Bending Roll  Up/Down  w/ Push  Button  and  Display
Use  The
Next  Or  Previous
Arrow  Button
To  Scroll  Thru  All
GMC
Rolls
 GMC  ROLL                                          Specifications
 Model   PBR-1012E
 Rolling  Capacity  ( Mild  Steel )  10'  x  12  Gauge
 Rolling  Capacity  ( Stainless )  10'  x  16  Gauge
 Roll  Diameter  6.25"
 Minimum  Bending  Diameter  8.5"
 Pre-Bend  0.12"
 Roll  Speed  20 Ft / Min
 Rolls  Opening  1/2"
 Groove  Sizes  ( 3 )  3/8" , 1/2", 5/8"
 Motors  ( Options )  Details
 Main  motor  ( Pre-wired  220 / 3 Ph )  5-1/2 HP
                      ( Optional    440 / 3 Ph )  *
 Machine  Net  Weight  Details
 Net  Weight  4,750 lbs
 Overall dimensions   Details
 L x W x H  132"  x  35"  x  56"
Features:

ISO 9001 certified
Taiwan machine
Hardened  Rolls  ( 3 )
3-rollers are driven to perform high accuracy
Adjustable cone attachment included
3/8”, ½” and 5/8” grooves on rollers
One wheel one-side operated for bending roll
Powered  pinch  roll
Heavy duty casting frame
Heavy duty all steel welded construction
1/3 of full length in middle of roller is straight,
and two ends with crown to get perfect round performance.
Quiet running operation
Easy swing-out top roller
Safety line all around the machine for emergency stop
All rolls run forward and reverse
Safety type forward/reverse foot pedal
50  HRC  Hardened  Rolls  for  Stainless
Power source 220V , 3  phase ( optional: 440V, 3 phase )
One year industrial warranty for parts

Standard Equipment for GMC H.D. Power Bending Rolls:
Adjustable cone attachment
3/8”, ½” and 5/8” grooves on rollers
Hardened  Rolls  ( 3 )
Removable safety foot pedal
Operation & parts manual
Orange color front cover is optional.
E models come with motorized bending roll up/down w/ push button and digital display for easy  operation of repeat jobs

Optional Equipment:
Safety fence for enclosure of the back side of the machine.

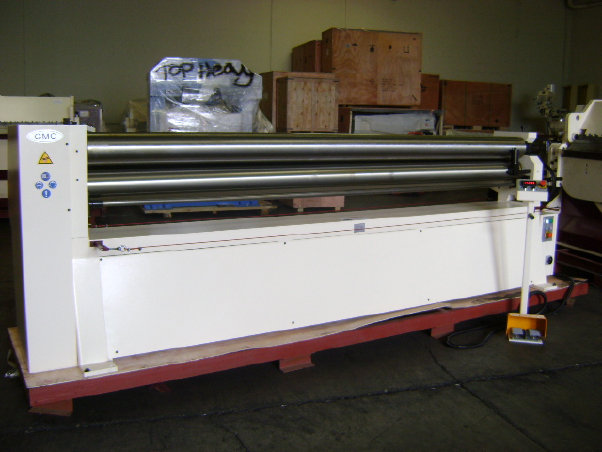

New GMC PBR-1012E PLATE ROLL - Picture
GMC  PBR-1010E - Illustrated
Website prices and/or specifications on  this  site  are intended solely as a guide and are not binding . Call to verify or to request the latest price or specfication update. We are not responsible for clerical errors . Incoming  freight  charges are  the  responsibility  of  the  purchasor  unless  otherwise  stated  and  agreed  to  in writing
