BIRMINGHAM LATHE |
Specifications |
Model |
YCL-1440 |
Size |
14"
x 40" |
Swing over bed |
14" |
Distance between centers |
40" |
Swing
over cross slide |
8 5/8" |
Swing over gap |
20" |
Spindle hole dia. |
1
1/2" |
Spindle |
D1-4 Camlok |
Spindle speeds |
45 to 1800 ( 16
speeds ) |
Metric threads |
0.45 - 7.5 mm, 22 kinds |
Inch
threads |
4 - 112 TPI, 40 kinds |
Width of bed |
8 1/8" |
Main motor |
3 HP |
Electrical |
Pre-Wired
220V / 3 phase or 220V / Single Phase |
Coolant pump motor |
1/8 HP |
Machine
Net Weight |
2000 lbs |
Use The
Next Or Previous
Arrow Button
To Scroll Thru All
BIRMINGHAM
YCL SERIES
LATHES
BIRMINGHAM YCL-1440 LATHE, New - Video
220 Volt / 1 Phase or 220 Volt / 3 Phase
Discount Prices ! Discount Prices ! Discount Prices !
Discount Prices !
BIRMINGHAM YCL-1440 LATHE
14" x 40" Lathe With Geared Headstock and Removable
Gap Bed
Pre-Wired
220 Volt Single Phase
Or
220 Volt Three Phase
BIRMINGHAM YCL-1440 LATHE
DESCRIPTION & FEATURES
This 14" Swing
BIRMINGHAM YCL-1440 Lathe is an all geared headstock 14" x 40" metal
cutting lathe and will make a great new addition to your machine
shop floor. Some of the many features included on this Birmingham 14"
x 40" lathe are a one piece cast Iron base, a 3 HP main
motor and a 1 1/2" spindle bore . It is equipped with inch and
metric threading and requires no change gears for most thread cutting
applications. The bed is made of a fine grain high tensile strength
cast iron and the gears, shafts, bedways and spindle are all precision
hardened & ground. The spindle on the Birmingham YCL-1440 Lathe is
supported at three points by precision bearings and will assure your
machinist of a good, solid and accurite cut for many years to come
. Available with either 220 Volt Single phase or 220 Volt 3 Phase pre-wired electrics
this Birmingham YCL-1440 Lathe is built to be a long time performer . Additional
features and equipment include 3 and 4-Jaw Chucks, face plate, steady rest,
follow rest, removable gap bed, 4-Way Tool Post, thread chasing dial, dead centers,
reducing sleeve, full length splash guard, chip tray, foot brake, worklight and coolant
system .
Taper attachment is optional but installation is free when ordered
at time of purchase.
Birmingham Lathes - The Machinist Choice !
Standard Equipment
6" 3-Jaw Chuck, 8" 4-Jaw Chuck, 10" Face Plate, 3 3/4" Steady
Rest, Follow Rest, Removable Gap Bed, 4-Way Tool Post, Stand, Thread Chasing Dial, Dead
Centers, Reducing Sleeve, Full Length Splash Guard, Chip Tray, Foot Brake, Worklight, Coolant
System.
FOR ADDITIONAL INFORMATION OR TO REQUEST A QUOTE CONTACT:
DAN BUCHANAN
TEL: 256-582-5353
Dealer of Birmingham Lathes for More Than 30 Years
!
Copyright | B U C K S P R E C I S I O N
M A C H I N E T O O L S | A l l R i g h t s
R e s e rv e d
Optional Equipment
5C Collet Closer - Hand Lever Type
5C Collet Chuck - Front Operated
Taper
Attachment
Micro Carriage Stop
Digital Readout: Newall, Acu-Rite or Birmingham Uniq

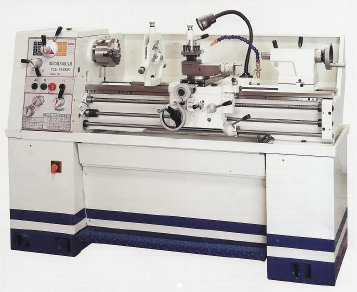

BIRMINGHAM YCL-1440GH Lathe
Accessories Package Includes:
-
3 and 4-Jaw Chucks
-
Steady Rest
-
Follow
Rest
-
and More
Details Below
