| BIRMINGHAM LATHE |
Details |
| Model |
YCL-2060, YCL-2080, YCL-20120 |
| Size Class |
20" x 60", 20" x 80", 20"
x 120" |
| Swing over Bed |
20.07" |
| Distance between centers |
59.05" / 78.74" / 118.11" |
| Max. Effective cutting length |
56" / 75 1/2" / 116" |
| Max.
swing over cross slide |
11 7/8" |
| Max. swing in gap bed |
29" |
| Effective length
in gap bed |
6" |
| Width of bed |
13 3/4" |
| Spindle nose |
D1-8 |
| Diameter of
spindle thru bore |
3 1/8" |
| Taper of spindle center |
MT # 7 / MT # 5 |
| Spindle speeds
- 12 Steps |
25, 35, 55, 80, 120, 170, 235, 350,
525, 700, 1100, 1600 RPM
|
| Longitudinal feeds: 35
kinds |
0.0022" to 0.0612" Rev. |
| Cross feeds: 35 kinds |
0.00048" to 0.01354"
Rev. |
| Metric threads: 47 kinds |
0.2 to 14 mm |
| Inch threads: 60 kinds |
2
to 112 TPI |
| Module threads: 39 kinds |
0.1 to 7 mm
|
| Diametral pitch threads:
50 kinds |
4 to 112 DP |
| Max. travel of cross slide |
12 15/16" |
| Max
travel of top slide |
5 1/8" |
| Longitudinal leadscrew Dia/Pitch |
Dia. 1 5/8" / 4 TPI |
| Diameter
of tailstock quill |
3" |
| Taper of tailstock quill center |
MT # 5 |
| Max. travel
of tailstock quill |
7" |
| Main motor |
10 HP, 230/460V/60 HZ, 3 phase - Prewired 230V |
| Coolant
pump |
1/8 HP, 230/460V/60 HZ, 3 phase Prewired 230V |
| Machine: |
Net Weight |
| YCL-2060 |
5200
lbs |
| YCL-2080 |
5900 lbs |
| YCL-20120 |
8500 lbs |
STANDARD EQUIPMENT:
Follow Rest, 18" Face plate, 7 1/2" Steady rest with rollers,
12" 3-Jaw Chuck, 16" 4-Jaw Chuck, 10" Drive plate, Coolant system, Removable gap,
4-Way tool post, Thread chasing dial, 4-Position automatic Kick-Out Longitudinal carriage
stop, Full length foot brake, Full length splash guard, Halogen work light, Dead
centers ( 2 ) , Reducing sleeve - MT# 7 - MT # 5, Tool kit with tools, Operation & parts
manual .
BONUS ! - FREE TAPER ATTACHMENT FOR A LIMITED TIME !
OPTIONAL EQUIPMENT:
12" Steady Rest with Roller Jaws
5C Hand Lever Type Collet
Closer
Use The
Next Or Previous
Arrow Button
To Scroll Thru All
BIRMINGHAM
YCL SERIES
LATHES
BIRMINGHAM YCL-2060 , YCL-2080 and YCL-20120 LATHES - Video
Discount Prices ! Discount Prices ! Discount Prices !
Discount Prices !
DESCRIPTION & FEATURES
These 20" Swing BIRMINGHAM YCL Series Lathes include
the models YCL-2060, YCL-2080 and YCL-20120. These Birmingham Lathes have proven
themselves to be the choice geared head metal cutting lathe
of the professional machinist . Some of the many features included on
these Birmingham YCL Series Lathes are a one piece cast Iron base, Removable
Gap Bed, 10 HP main motor, 3 1/8" Spindle Bore, 60 kinds of
inch threads, 47 kinds of metric threads, 39 kinds of module threads and
50 kinds of diametral pitch threads. No change gears are required for
most thread cutting applications. The Birmingham YCL-2060, YCL-2080 and YCL-20120
Lathes feature a fine grain high tensile strength bed and will provide
many years of trouble free service . All gears, shafts and bedways are
hardened & ground and the main spindle is hardened & ground.
Additional features and equipment on the Birmingham YCL-2060, YCL-2080, YCL-20120
Lathes include 3 and 4-Jaw Chucks, face plate, steady rest, follow rest, 4-Way
Tool Post, thread chasing dial, dead centers, reducing sleeve, full length splash
guard, one piece cast iron base, foot brake, worklight, coolant system, leveling pads, 4
position auto kick-out longitudinal carriage stop and tool box - and for
a limited time we are including a free taper attachment - installed - at
no extra cost.
FOR ADDITIONAL INFORMATION OR TO REQUEST A QUOTE CONTACT:
DAN BUCHANAN
TEL: 256-582-5353
Dealer of Birmingham Lathes for More Than 30 Years
!
Copyright | B U C K S P R E C I S I O N
M A C H I N E T O O L S | A l l R i g h t s
R e s e rv e d
Inch, Metric,
Diametral
Pitch
and
Module Thread Cutting
Hardened and Ground
Gears, Shafts, Spindle
and
Bedways
Digital Readout: Newall, Acu-Rite or Birmingham Uniq
Geared Head Gap Bed Engine Lathes
B U C K' S P R E C I S I O N M A C H I N E T O O L S
G U N T E R S V I L L E, A
L A B A M A 3 5 9 7 6
TEL: 2 5 6 - 5 8 2 - 5 3 5 3 www.buckspmt.com
New
Machine Tools
by Name Brand are
Listed Below
Select a Link To
Go
to the Index Page
of Your Choice

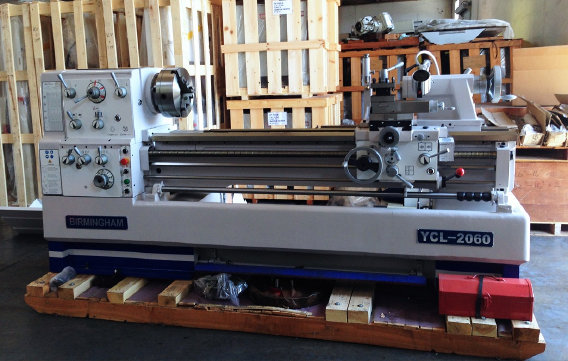

BIRMINGHAM YCL-2060 LATHE

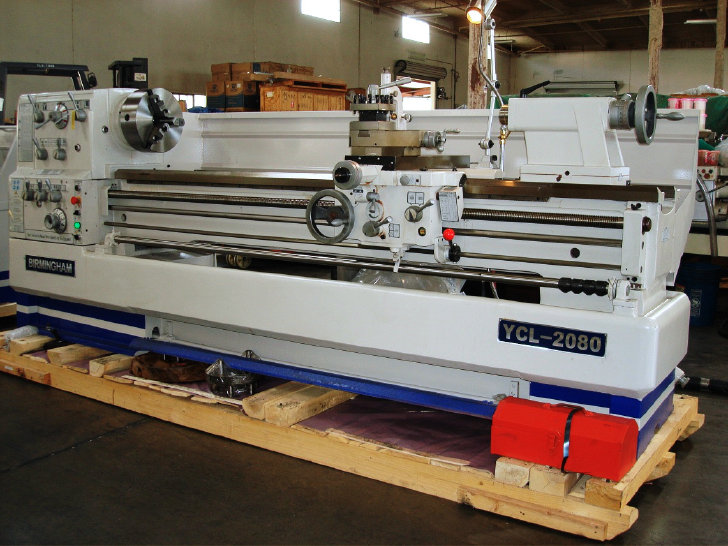

BIRMINGHAM YCL-2080 LATHE

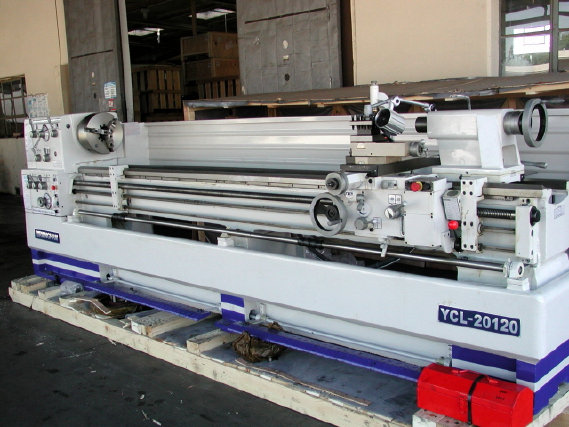

BIRMINGHAM YCL-20120
