BIRMINGHAM
Vertical
Milling Machines
BIRMINGHAM KNEE TYPE MILLING MACHINE W/ 9 x 49 Table , New
With 3 Hp Step
Pulley Head , Model BPS-1649-C
FOR ADDITIONAL INFORMATION OR TO REQUEST A QUOTE CONTACT:
DAN BUCHANAN
TEL: 256-582-5353
Dealer of Birmingham Milling Machines for More Than 30
Years !
Copyright | B U C K S P R E C I S I O N
M A C H I N E T O O L S | A l l R i g h t s
R e s e rv e d

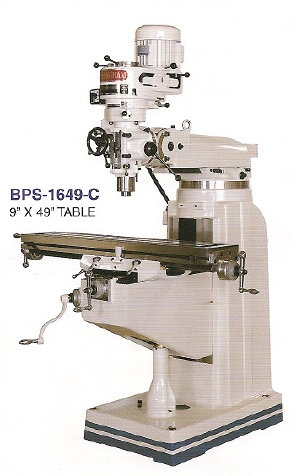

BIRMINGHAM BPS-1649-C
Knee Type Vertical Milling Machine
With Step Pulley Drive
And 9"
x 49" Table
Taiwan Designed Head and Cost Savings China Made Body
- 9"
x 49" Table
- High Grade Cast Iron Frame
- Dovetail Guideways
- High Precision Class
7 Spindle Bearings
- Hardened & Ground Work Table
- Hardened & Ground On X & Y
Axis Slide Ways
- Tilting and Rotating Head
- Chromed Ground Quill
- Hand
and Power Spindle Feeds
- Double Knee and Table Locks
- R-8 Spindle
- 90
to 5600 ( 16 Speeds ) / 3 Phase Machines
- 90 to 2800 ( 8 Speeds
) / Single Phase Machines
- 600 lb Table Load Capacity
- Quill Travel: 5"
- Cross Travel:
13 1/4"
- Vertical Travel ( Knee ) : 16"
- Table Travel ( Hand Only ): 35 1/2"
- Table Travel (
W/ Power Feed ): 33"
- 3 HP, 220 Volt / 440 Volt / 3 PH
- Optional: 220 Volt Single
Phase Motor On BPS-1649-C
- Machine Net Weight: 2350 Lbs
OPTIONAL ACCESSORIES
- 4" or 6" Angle Lock Vise
- R-8 Collets (11 Piece )
- Power Feeds: X, Y or
Z-Axis
- 52 Piece Pro Quality Clamp Kit
- Digital Readout
