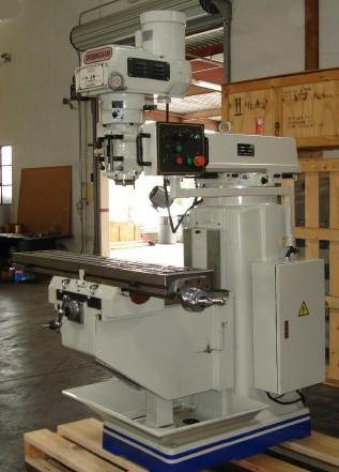

BIRMINGHAM BPV - 4KV-C
Knee Type Vertical Milling Machine
With 5 HP Variable Speed
Drive, NT #40
And Square Ways On Y, Z Axis
- 10" x 54" Hardened & Ground Work Table
- 5 HP Heavy Duty Variable Speed Head
- 65 - 3,750 RPM
- Hardened & Ground
Ways & T-Slots
- High Grade Casting
- NT-40 Spindle Taper
- Class 7 Spindle Bearings
- Chromed
Precision Ground Quill
- 800 Lb Table Load Capacity
- Universal Ram Adapter
with 45° ( degree ) Tilt
- Square Ways On Column & Knee
- Chromed
Satin Dials
- Built in Coolant Return
- Dual Saddle And Knee Locks
- Quill Travel
5"
- Table Travel ( Hand Only ) : 37 1/4"
- Table Travel ( Power Feed ) : 32"
- Cross Travel:
16 1/2"
- Vertical Travel ( Knee ) : 16 1/2"
- Manufactured In China
BIRMINGHAM 10 x 54 VARIABLE SPEED MILLING MACHINE , New
With 5 Hp Motor , NT
40 Spindle Taper and Square Ways on Y & Z Axis
Model BKV-4KV-C
FOR ADDITIONAL INFORMATION OR TO REQUEST A QUOTE CONTACT:
DAN BUCHANAN
TEL: 256-582-5353
Dealer of Birmingham Milling Machines for More Than 30
Years !
OPTIONAL ACCESSORIES
- 4" or 6" Angle Lock Vise
- R-8 Collets (11 Piece )
- Power Feeds: X, Y or
Z-Axis
- 52 Piece Pro Quality Clamp Kit
- 2 or 3 Axis Digital Readout
