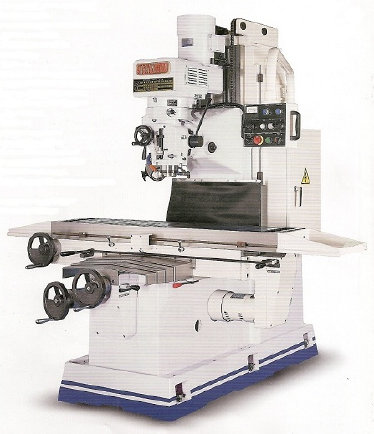

BIRMINGHAM BPV - B3V
Variable Speed Bed Type Milling Machine
With 5 HP Head
& Square Ways On Y, Z Axis
With X, Y, Z Axis Ballscrews
With X, Y, Z
Axis Built-In Inverter Drive Power Feeds
- 15" x 60" Hardened & Ground Work
Table
- 5 HP Variable Speed Head
- 70 - 4300 RPM
- 220 Volt / 3 PH
- NT-40 Spindle
Taper
- X, Y, Z Axis Ballscrews
- X, Y, Z 3-Axis Built-In Inverter Drive Power Feeds
- Wear
Resistant Turcite "B" on X & Y Table
- Square Ways On Y & Z Slideways
- Quill Travel: 5"
- Longitudinal Travel ( X-Axis Table ) : 41"
- Cross Travel ( Y-Axis Table ) : 20"
- Vertical
Travel ( Head ) : 23"
- 2200 Lb Table Load Capacity
- Coolant System With Base
Pan
- Control Panel With Electrical Cabinet
- Auto Lube System
- Worklight
Made in Taiwan
FOR ADDITIONAL INFORMATION OR TO REQUEST A QUOTE CONTACT:
DAN BUCHANAN
TEL: 256-582-5353
Dealer of Birmingham Milling Machines for More Than 30
Years !
Copyright | B U C K S P R E C I S I O N
M A C H I N E T O O L S | A l l R i g h t s
R e s e rv e d
Special Order Only
90 Day Delivery Lead Time Required
Price On Request
New
Machine Tools
by Name Brand are
Listed Below
Select a Link To
Go
to the Index Page
of Your Choice
BIRMINGHAM 15 x 60 BED TYPE MILLING MACHINE
With 5 Hp Variable Speed
Head , NT 40 Spindle Taper
and Square Ways on Y and Z Axis
Model BPV-B3V
