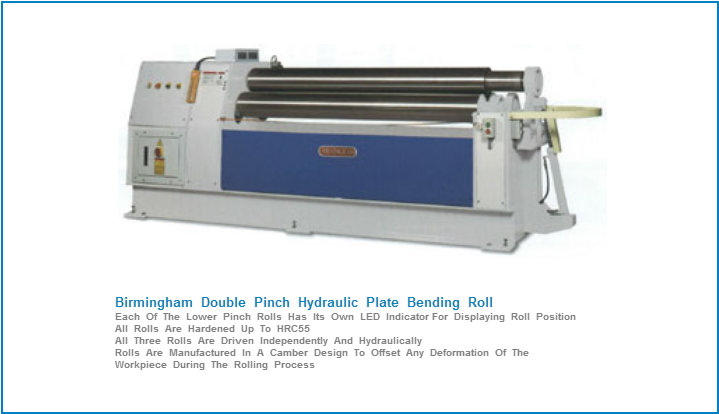

Birmingham Double Pinch Plate Roll
Roll Position Diagram
Birmingham Double Pinch Plate Roll
Hydraulic Drop End For Easy Removal
Of Workpiece
Birmingham Double Pinch Plate Roll
Each Pinch Roll Has LED Readout Indicators
For Displaying Roll Position
New
Machine Tools
by Name Brand are
Listed Below
Select a Link To
Go
to the Index Page
of Your Choice
B U C K' S P R E C I S I O N M A C H I N E T O O L S
G U N T E R S V I L L E, A
L A B A M A 3 5 9 7 6
TEL: 2 5 6 - 5 8 2 - 5 3 5 3 www.buckspmt.com
BIRMINGHAM 8 Ft x 6 Gauge Double Pinch Plate Roll , Hydraulic
Model
RH-0805
FOR ADDITIONAL INFORMATION OR TO REQUEST A QUOTE CONTACT:
DAN BUCHANAN
TEL: 256-582-5353
We Always Discount !
Description and Features:
OPTIONS:
Variable Speed Roll Rotation
Cone Bending Attachment
Copyright | B U C K S P R E C I S I O N
M A C H I N E T O O L S | A l l R i g h t s
R e s e rv e d
BIRMINGHAM RH-0805 8 Ft x 6 Gauge Double Pinch Hydraulic Plate Roll
- Capacity: 8'
4" x 6 Gauge Mild Steel
- Roll Diameter: 8"
- Main Motor: 3 HP
- Roll
Speed: 197 Inches / Minute
- Net Weight: 10,200 Lb
- All Three Rolls Are Driven Independently
And Hydraulically
- Forward / Reverse Roll Movement
- Each Of The Lower Pinch Rolls
Has Its Own LED Indicator For Displaying Roll Position
- All Rolls Are Hardened
Up To HRC55
- Rolls Are Manufactured In A Camber Design To Help Offset
Deformation Of The Workpiece During The Rolling Process
- Hydraulically Tilted
Drop End For Easy Removal Of Workpiece
- Hydraulic Circuits Protect Against
Overload And Are Fully Enclosed To Provide A Low Noise And Leak
Proved System
- Sperical High Quality Sealed-In Roller Bearings Protect Against
Dirt & Dust And Are Installed On All Rolls
- Planetary Reduction Gear
& Pump Output High Torque For Smooth And Powerful Roll Rotation
