BIRMINGHAM 8 Ft x 5/16 Double Pinch Plate Roll , Hydraulic
Model RH-0808
FOR ADDITIONAL INFORMATION OR TO REQUEST A QUOTE CONTACT:
DAN BUCHANAN
TEL: 256-582-5353
We Always Discount !
Description and Features:
OPTIONS:
Variable Speed Roll Rotation
Cone Bending Attachment
Copyright | B U C K S P R E C I S I O N
M A C H I N E T O O L S | A l l R i g h t s
R e s e rv e d

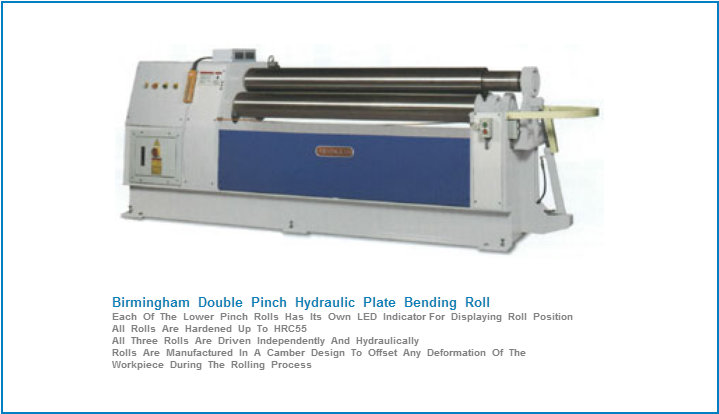

BIRMINGHAM 8 Ft x 5/16 Double Pinch Hydraulic Plate Roll ... Model
RH-0808
- Capacity: 8' 4" x 5/16 Mild Steel
- Roll Diameter: 10"
- Main Motor: 7.5
HP
- Roll Speed: 177 Inches / Minute
- Net Weight: 15,800 Lb
- All Three Rolls Are Driven
Independently And Hydraulically
- Forward / Reverse Roll Movement
- Each Of The Lower
Pinch Rolls Has Its Own LED Indicator For Displaying Roll Position
- All
Rolls Are Hardened Up To HRC55
- Rolls Are Manufactured In A Camber
Design To Help Offset Deformation Of The Workpiece During The Rolling
Process
- Hydraulically Tilted Drop End For Easy Removal Of Workpiece
- Hydraulic
Circuits Protect Against Overload And Are Fully Enclosed To Provide A
Low Noise And Leak Proved System
- Sperical High Quality Sealed-In Roller
Bearings Protect Against Dirt & Dust And Are Installed On All
Rolls
- Planetary Reduction Gear & Pump Output High Torque For Smooth
And Powerful Roll Rotation
