B U C K' S P R E C I S I O N M A C H I N E T O O L S

G U N T E R S V I L L E, A L A B A M A 3 5 9 7 6

TEL: 2 5 6 - 5 8 2 - 5 3 5 3 www.buckspmt.com


GMC LATHE	Specifications
Model	GML-1660 VS
Size	16" x 60"
Swing over bed	16-1/16"
Distance between centers	60"
Max swing over cross-slide	10-1/4"
Max swing in gap	23-1/4"
Width of bed	10-1/4"
Effective length in gap to spindle	8-1/2"
Effective length in gap to chuck jaws	3-1/2"
Spindle hole dia.	2-1/16"
Spindle	D1-6 Camlok
Taper of spindle center	MT #6 ( MT6/MT4 Sleeve )
Spindle speeds ( 16 )	45 - 3000 RPM
Longitudinal feeds	0.0018 - 0.07 IPR, 42 kinds
Cross feeds	0.0009 - 0.03 IPR, 42 kinds
Threads	Details
Inch threads	70 - 2 TPI 45 kinds
Metric threads	0.2 - 14 mm , 39 kinds
Diamentral pitch threads	8 - 40 DP , 21 kinds
Module threads	0.3 - 3.6 MM , 18 kinds
Carriage	Details
Maximum travel of top slide	4-1/4"
Maximum travel of cross-slide	8-1/2"
Tailstock	Details
Diameter of tailstock quill	2-1/16
Maximum travel of tailstock quill	5"
Taper of tailstock quill center	M.T. # 4
Motors	Details
Main motor	7.5 HP, 220 V, 3 phase
Coolant pump motor	1/8 HP, 220 V, 3 phase
Machine net weight	4,850 lbs
Overal dimensions LxWxH	100" x 38" x 56"

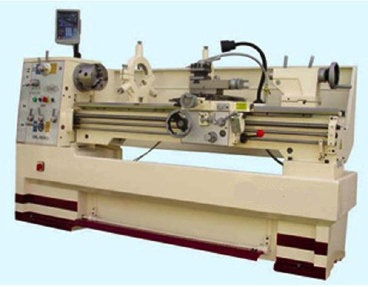

GMC GML-1660 VS LATHE

16" x 40" Variable Speed Lathe With Removable Gap and 6 HP Motor

2-1/16"

Spindle Bore

7.5 HP

220 Volt

Three Phase

The GMC GML-1660 VS Lathe

Accessories Package

Includes

3 and 4-Jaw Chucks, Steady Rest, Follow Rest and More

Details Below

Optional Equipment:

2-Axis Digital Readout System

Accessories package includes:

8" 3-Jaw Chuck with Set Reversable Jaws, 10" 4-Jaw Chuck with Set Reversable Jaws, 12" Face Plate, 5-1/2" Large Steady Rest, 2" Follow Rest, Removable Gap, Foot Brake, Coolant System, Halogen Work Light, 4-Way Tool Post, Full Length Splash Guard, ( 2 ) Dead Centers, ( 1 ) Reducing Sleeve, Thread Chasing Dial, Tool Box

FREE TAPER ATTACHMENT

Features:

ISO 9001 certified
Large spindle bore 2-1/16”
Heavy Duty spindle D1-6
One-piece solid cast iron machine base
Heavy Duty guideway width 10-1/4”
Heavy Duty 6 HP motor
Speeds 45- 3000 RPM Variable Speed
45 kinds of Inch Cutting Threads
39 kinds of Metric Cutting Threads
18 Kinds of Module Cutting Threads
21 Kinds Of Module Pitch Cutting Threads
Threading and feeding rate change without changing gears
Spindle is balanced, hardened and precision ground
Spindle is supported at 3-point by high precision bearings
All gears and shafts are hardened and precision ground
Guideways induction hardened and precision ground
Automatic lubrication system in headstock and feed box
One year industrial warranty for parts

DESCRIPTION & FEATURES:

This New 16" Swing GMC GML-1660 VS Lathe is a 16" x 60" ELECTRONIC VARIABLE SPEED metal cutting lathe with a 7.5 HP inverter drive motor. Constructed of high tensile strength cast iron and incorporated with induction hardened and ground bed ways this ISO 9002 certified lathe carries all hardened and precision ground gears & shafts within the headstock and an automatic lubrication system for the headstock and feed box. Variable speeds range from 45 to 3,000 rpm . The Footbrake and a more than adequete 2-1/16" spindle bore make the GMC GML-1660 VS variable speed lathe a great choice for any machine shop floor.

Inch, metric, diametral pitch and module threading are all standard on the GMC GML-1660 VS variable speed lathe.

More info on standard features and equipment can be found below.
