B U C K' S   P R E C I S I O N    M A C H I N E   T O O L S
G U N T E R S V I L L E,  A L A B A M A   3 5 9 7 6
TEL: 2 5 6 - 5 8 2 - 5 3 5 3     www.buckspmt.com
S
 GMC  LATHE                                            Specifications
 Model   GT-1840 DB , GT-1860 DB
 Size   16"  x 60" , 80"
 Swing  over  bed   18"
 Distance  between  centers  40" , 60"
 Max  swing  over  cross-slide   11-5/16"
 Max  swing  in  gap   25-3/16"
 Width  of  bed   11-13/16"
 Effective  length  in gap  to  spindle  10-1/4"
 Effective  length  in  gap  to  chuck  jaws  3"
 Spindle  hole  dia.  3-1/16"
 Spindle  D1-8  Camlok
 Taper  of  spindle  center  MT #6
 Spindle  speeds  ( 12 )  24 - 1600  RPM
 Longitudinal  feeds  0.0012 - 0.0252  IPR, 42  kinds
 Cross  feeds   0.0006 - 0.0126  IPR, 42  kinds
 Threads  Details
 Inch  threads  56.2 - 2  TPI  56  kinds
 Metric  threads  0.4 - 14 mm  , 53  kinds
 Diamentral  pitch  threads  32 - 4  DP , 32  kinds
 Module  threads  0.4 - 7  MM , 32  kinds
 Carriage  Details
 Maximum  travel  of  top  slide  5"
 Maximum  travel  of  cross-slide  12"
 Tailstock  Details
 Diameter  of  tailstock  quill  2-1/8"
 Maximum  travel  of  tailstock  quill  4-3/4"
 Taper  of  tailstock  quill  center  M.T. # 4
 Motors  Details
 Main  motor  ( Pre-wired  220  V / 3 )  7.5  HP, 220/440  V, 3  phase
 Coolant  pump motor Pre-wired  220 V / 3 )  1/8  HP, 220/440  V, 3  phase
 Machine  net  weight  5,450  lbs , 5,950  lbs
 Overall dimensions   Details
 GT-1840 DB  LxWxH  88"  x  41"  x  58"
 GT-1860 DB  LxWxH  108"  x  41"  x  58"
GT-1840 DB  and  GMC GT-1860 DB  LATHE
18 x 40  and  18  x  60  lathe
3-1/16"
Spindle  Bore
Removable
Gap
Bed
DESCRIPTION  &  FEATURES:

This  New  18"  Swing GMC  GT-1840DB  and  GT-1860DB  Lathes  are  18"  swing  metal  cutting  lathes  with  7.5  HP  motor. Constructed  of  high  tensile  strength  cast  iron  and  incorporated  with  induction  hardened  and  ground  bed ways  these  ISO 9001  certified lathes  carry  all  hardened  and  precision  ground  gears  &  shafts  within  the  headstock  and  a  automatic  lubrication  system  for  the  headstock  and  feed  box. 12  Spindle  Speeds  range  from  24  to  1600  rpm . The   Footbrake  and  a  more  than adequete  3-1/16"  spindle  bore  make  the  GMC  GT-1840DB  and  GT-1860DB  lathes  a  great  choice  for  any  machine  shop  floor.

Inch, metric, diametral  pitch  and  module   threading  are  all  standard  on  the  GMC GT-1840DB  and  GT-1860DB  lathes.

More  info  on  standard  features  and  equipment  can be  found  below.

GMC  GT-1860 DB  Lathe - Illustrated
GMC  GT-1840 DB  and  GT-1860 DB Lathes , New
Accessories  Package
Includes
3  and  4-Jaw  Chucks,
Steady  Rest,
Follow  Rest  and  More

Details  Below
7.5  HP
220  or  440 Volt
Three  Phase
Pre-Wire
Available

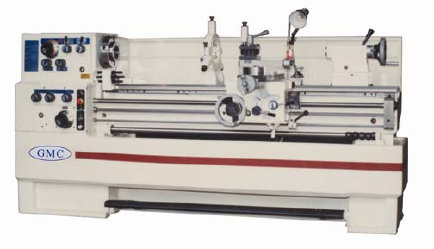

GMC  GT-1860 DB  Lathe
Standard Equipment  for  GT-1840DB  and  GT-1860DB  Lathes

Free Taper turning attachment, , installed
10” 3-jaw chuck with set reversible jaws
12” 4-jaw chuck with set reversible jaws
16” Face plate
10” drive plate
5 1/2” large steady rest
3” follow rest
Removeable gap
4-way tools post
Foot brake
Work light and coolant system
Manual Lube pump on apron for all guideways
Automatic kick-out longitudinal carriage stop system
Full length splash guard
(2) dead centers and (1) reducing sleeve
Thread chasing dial
Tool box
